BARE COPPER TINNED COPPER
Steel spools type Description Steel spools type Description

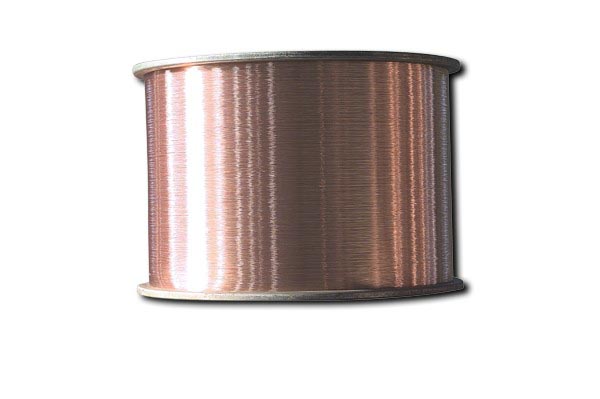

630 Flange diameter: 630 mm (24.803”)
Capacity: 500 kg (1,102 Lbs)
Bore: 127 mm (5”)
Tare: 105 kg (231.48 Lbs)
Single wire ø: 0.15 ÷ 0.50 mm
Number of wires: max. 48
Winding type: Dynamic or Static

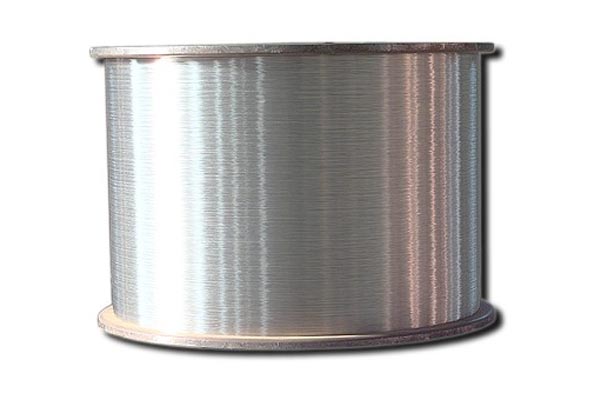

630 Flange diameter: 630 mm (24.803”)
Capacity: 500 kg (1,102 Lbs)
Bore: 127 mm (5”)
Tare: 105 kg (231.48 Lbs)
Single wire ø: 0.20 ÷ 0.50 mm
Number of wires: max. 32
Winding type: Dynamic or Static
foto prod 2 image prod 5

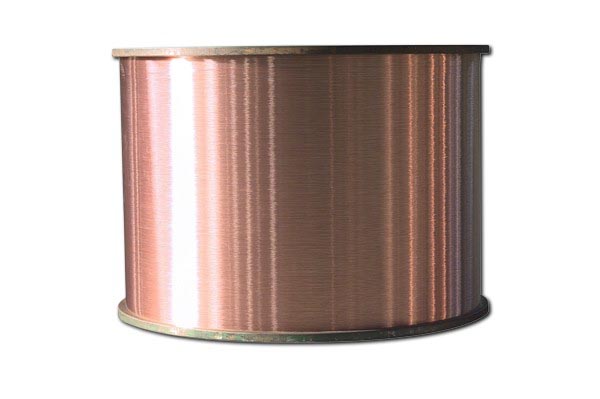

800 Flange diameter: 800 mm (31.496”)
Capacity: 1,000 kg (2,204 Lbs)
Bore: 127 mm (5”)
Tare: 200 kg (440.93 Lbs)
Single wire ø: 0.20 ÷ 0.50 mm
Number of wires: max. 48
Winding type: Dynamic or Static

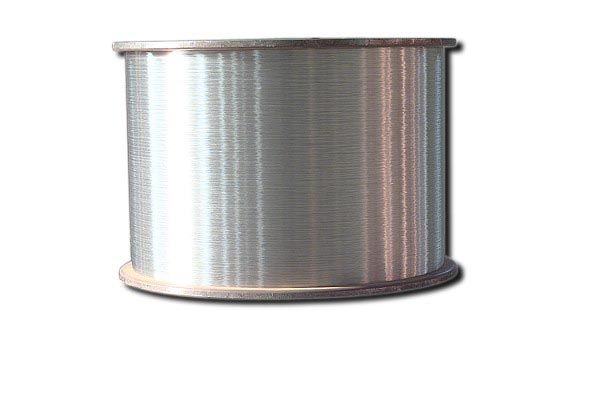

800 Flange diameter: 800 mm (31.496”)
Capacity: 1,000 kg (2,204 Lbs)
Bore: 127 mm (5”)
Tare: 200 kg (440.93 Lbs)
Single wire ø: 0.20 ÷ 0.50 mm
Number of wires: max. 32
Winding type: Dynamic
foto prod 4 foto prod 1

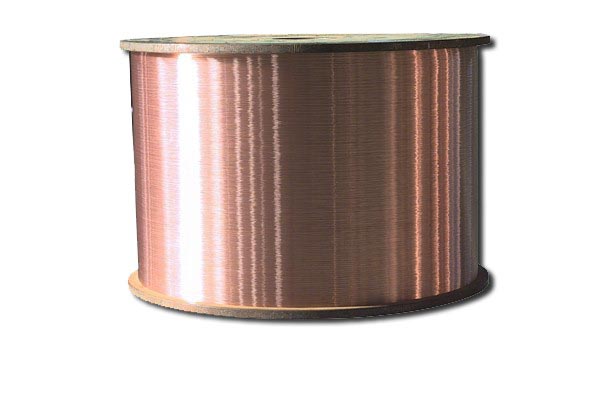

1000 Flange diameter: 1,000 mm (39.370”)
Capacity: 2,000 kg (4,408 Lbs)
Bore: 127 mm (5”)
Tare: 500 kg (1,102 Lbs)
Single wire ø: 0.20 ÷ 0.50 mm
Number of wires: max. 48
Winding type: Static
foto prod 3



Standard Specification

Our Sales Department supplies consulting and will send technical documents required by clients about product range available.


Referenced Standard:

Drawn, Round Copper Wire for the manufacture of electrical conductors - According to standard UNI EN 13602.


Wire rod used: Electrolytic Tough_Pitch Copper Cu ETP1 UNI EN1977.

Electrical properties of Copper wire rod used at a temperature of 20° C.

Resistivity value max. 0,017070 mm2/m=866.53 Lb/mile2 - Conduttivity value min.: 101,0 % I.A.C.S.
